Coraynic Technology supplies tungsten and molybdenum hot zone components for sapphire crystal growth furnaces and other high-temperature vacuum processing equipment.

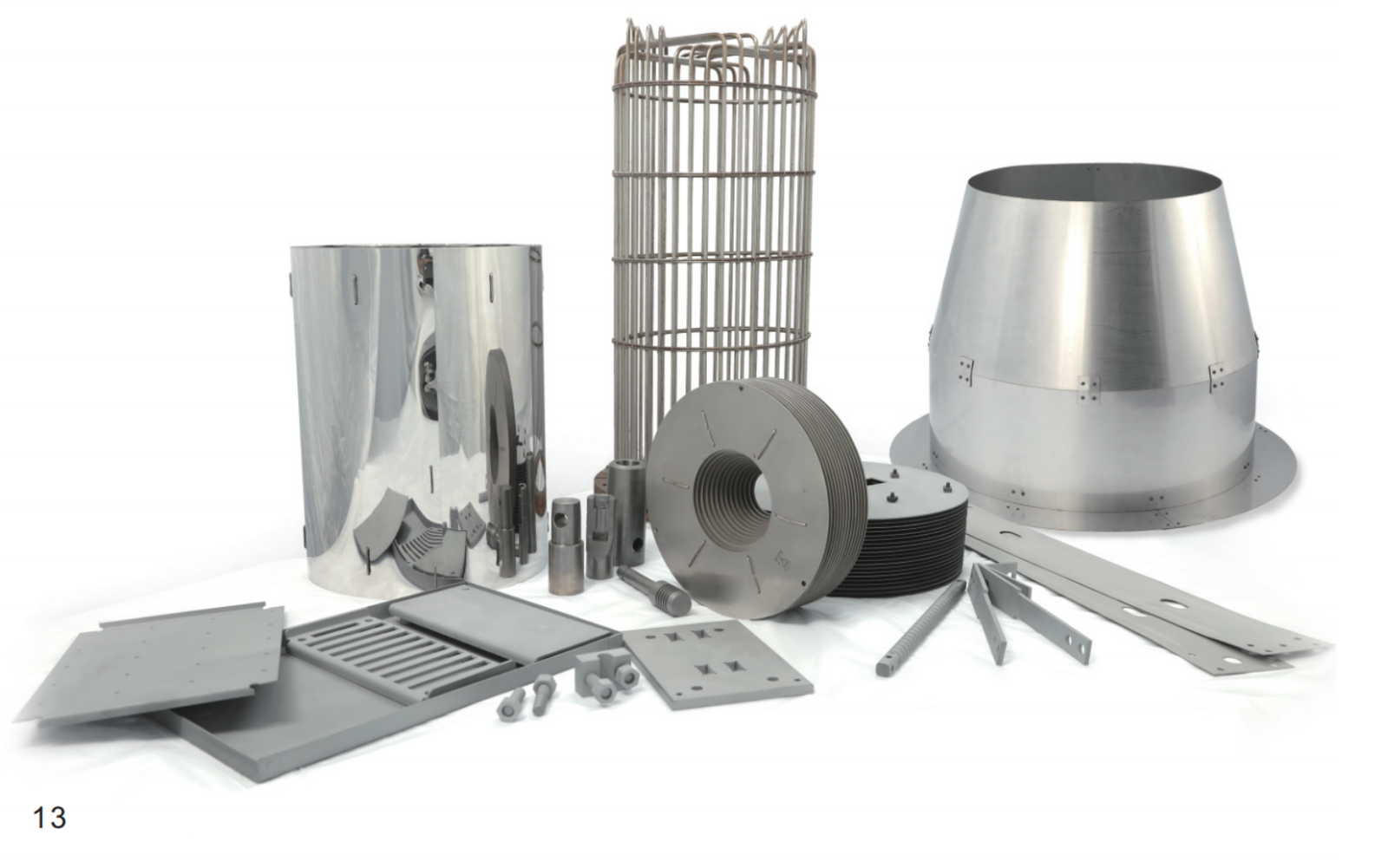

Our sapphire furnace hot zone materials include tungsten rod heaters, molybdenum heat shields, sapphire seed holders, and tungsten support columns and bases. These components are designed according to furnace configuration, hot zone geometry, crystal growth process, and customer drawings.
For critical furnace components, material selection, dimensional accuracy, component geometry, and assembly compatibility can directly affect thermal-field stability and equipment operation. Coraynic provides customized refractory metal components manufactured according to technical drawings and agreed specifications.
Sapphire Furnace Hot Zone Components
The tungsten rod heater is a key heating element used in sapphire crystal growth furnaces. Electrical current passes through the tungsten rods, generating heat to melt the alumina raw material inside the crucible.
Tungsten is selected for applications requiring high-temperature stability and controlled heating performance. The heater geometry is designed according to the furnace structure and required heating configuration.
Application
Typical customization
Components can be manufactured according to customer drawings and technical specifications.
Molybdenum heat shields are used in sapphire crystal growth furnaces to reduce heat loss and help establish a stable and uniform thermal field around the crucible and crystal growth zone.
A heat shield can consist of multiple molybdenum sheets arranged with controlled spacing. Depending on the furnace design and service requirements, tungsten sheet may be used for the innermost layer.
The multilayer structure is designed according to the required hot zone geometry and furnace configuration.
Application
Typical customization
All dimensions and configurations can be manufactured according to customer drawings.
The seed crystal holder is used to secure the sapphire seed crystal during the crystal growth process.
In a sapphire crystal growth furnace, the seed holder holds the seed crystal and positions it above or within the alumina melt according to the furnace growth configuration. During crystal growth, the seed assembly may be rotated and gradually pulled as the crystal develops.
The seed holder is therefore a precision component that must match the seed crystal geometry and the mechanical structure of the furnace.
Application
Typical customization
The seed holder is manufactured according to the customer’s drawings, samples, or agreed technical specifications.
Tungsten support columns and bases provide mechanical support for the tungsten crucible inside a sapphire crystal growth furnace.
During high-temperature operation, the support structure must maintain the position and stability of the crucible and other hot zone components. The column and base geometry are therefore designed according to the furnace structure and crucible dimensions.
Application
Typical customization
Components are produced according to furnace drawings and customer specifications.
Tungsten and Molybdenum Hot Zone Materials
Tungsten and molybdenum are commonly used for critical components in high-temperature furnace environments because of their high-temperature capability and suitability for demanding thermal processing applications.
The appropriate material depends on the furnace configuration, operating conditions, component geometry, service requirements, and customer specifications.
For sapphire crystal growth equipment, different components may use different refractory metal materials. For example, tungsten can be used for heating elements, crucibles, supports, and selected heat-shield layers, while molybdenum can be used for multilayer heat shields and other furnace structural components.
Material grade, purity, density, manufacturing process, and dimensional requirements can be specified according to the application.
Custom Sapphire Furnace Hot Zone Components
Sapphire growth furnaces differ in furnace size, thermal-field configuration, crucible dimensions, heating arrangement, and mechanical structure. For this reason, critical hot zone components are commonly designed around the specific furnace rather than selected only by standard dimensions.
Coraynic supports custom manufacturing based on:
Custom designs can include changes to component geometry, dimensions, wall or sheet thickness, mounting features, connection interfaces, and other requirements defined by the customer’s technical documentation.
Special requirements can be reviewed and agreed upon between the supplier and buyer before production.
Manufacturing and Quality Control
Depending on the material, component geometry, dimensions, and technical requirements, refractory metal components may involve processes such as powder metallurgy, sintering, forging, machining, and precision finishing.
For customized furnace components, manufacturing and inspection requirements are established according to the agreed technical specifications.
Quality control may include inspection of:
Inspection requirements can be defined according to the customer’s drawings and application requirements.
Related Sapphire Furnace Components
Coraynic can also supply related tungsten and molybdenum components for high-temperature furnace systems, including:
These components can be evaluated individually or as part of a customized hot zone assembly according to the furnace design.
Why Use Custom Hot Zone Components?
For sapphire crystal growth equipment, the hot zone is a system of interconnected components rather than a collection of independent parts.
The heater, crucible, heat shields, seed holder, and support structures must fit the furnace geometry and work within the intended thermal and mechanical configuration.
Custom manufacturing allows important parameters such as component dimensions, mounting interfaces, layer spacing, heater geometry, and material requirements to be defined according to the actual furnace design.
This approach is particularly suitable for:
Ordering Information
To evaluate a custom sapphire furnace hot zone component, customers are encouraged to provide:
After reviewing the technical information, Coraynic can confirm the manufacturing feasibility, applicable material, production requirements, lead time, and quotation.
Request Custom Sapphire Furnace Hot Zone Components
Need custom tungsten or molybdenum components for a sapphire crystal growth furnace?
Send your drawing, CAD file, material requirements, dimensions, furnace configuration, and required quantity to Coraynic Technology.
Our team can review the specifications and provide a quotation for tungsten rod heaters, molybdenum heat shields, sapphire seed holders, tungsten support columns, bases, and other customized refractory metal furnace components.
