Beryllium Oxide (BeO) Rods – Precision Engineered for Vacuum Electronics, Heat Sinks, and High-Temperature Crucible Supports
Beryllium Oxide (BeO) ceramic rods combine **extreme thermal conductivity (285 W/m·K)** with **excellent electrical insulation** and **low dielectric loss**. Second only to diamond in thermal performance, BeO rods are the preferred material for **traveling wave tube (TWT) spiral supports**, **RF power transistor packages**, **nuclear control rods**, and **high-temperature crucibles**.
Coraynic Technology offers **99.5% high-purity BeO rods** in a wide range of diameters and lengths, with custom end configurations including **stepped, threaded, flanged, and metallized terminations**. Our rods are CNC ground to precision tolerances and are available with **MoMn/Ni/Au metallization** for brazing and hermetic sealing.
With a **dielectric constant of 6.6 @1MHz** and a **dissipation factor of 0.0004**, BeO rods introduce minimal signal loss at high frequencies, making them indispensable in **military radar, satellite communication, and microwave vacuum devices**.
## Key Features & Benefits
– **Thermal Conductivity:** 285 W/m·K @25°C – 10× Al₂O₃, 1.5× AlN.
– **Low Dielectric Loss:** 6.6 @1MHz, tan δ ≤0.0004 – ideal for high-frequency vacuum electronics.
– **High Melting Point:** 2530°C – operational up to 2000°C continuous.
– **CTE Matched to Metals:** 7.0–8.0 ×10⁻⁶/°C – compatible with kovar, copper, and stainless steel.
– **Mechanical Strength:** Flexural strength ≥200 MPa, compressive strength >350 MPa.
– **Precision Tolerances:** Diameter ±0.5%, length ±0.1 mm, camber <0.1%.
– **Custom End Configurations:** Stepped, tapered, threaded, flanged, notched, metallized bands.
– **Metallization Options:** MoMn + Ni/Au, thin film, DBC ready.
– **Nuclear Grade:** Low neutron capture cross-section, high moderating ability.

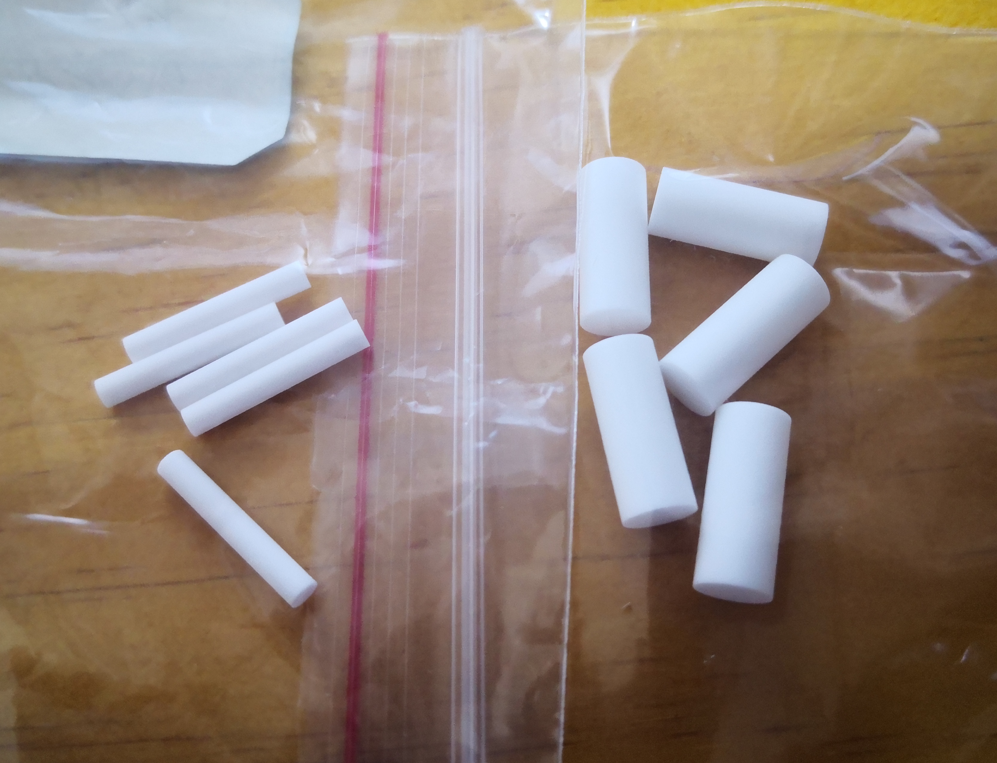

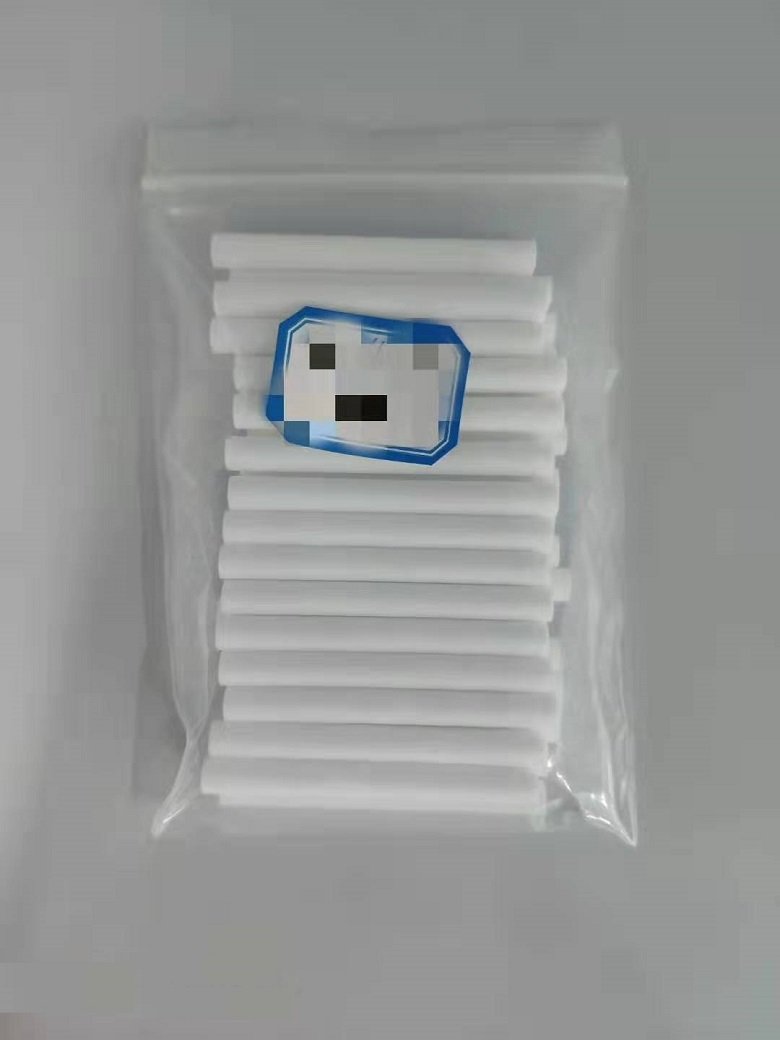

## Technical Specifications (99.5% BeO Rod)
| Property | Unit | Value |
|———-|——|——-|
| Purity | % | 99.5 |
| Density | g/cm³ | ≥2.88 |
| Color | – | White |
| Melting Point | °C | 2530 ±10 |
| Thermal Conductivity (25°C) | W/m·K | 285 |
| Thermal Conductivity (100°C) | W/m·K | 220 |
| Dielectric Constant (1MHz) | – | 6.6 ±0.2 |
| Dielectric Constant (10GHz) | – | 6.8 ±0.2 |
| Dissipation Factor (1MHz) | – | ≤4×10⁻⁴ |
| Dissipation Factor (10GHz) | – | ≤4×10⁻⁴ |
| CTE (25–500°C) | ×10⁻⁶/°C | 7.0 – 8.0 |
| Volume Resistivity (25°C) | Ω·cm | >10¹⁴ |
| Dielectric Strength (DC) | kV/mm | ≥40 |
| Flexural Strength | MPa | ≥200 |
| Compressive Strength | MPa | >350 |
| Hardness (Knoop) | – | 1200 |
| Poisson’s Ratio | – | 0.26 |
| Young’s Modulus | GPa | 345 |
| Grain Size | μm | 10 – 20 |
| Air Tightness | Pa·m³/s | ≤5×10⁻¹² |
| Chemical Stability | mg/cm² | ≤0.1 (HCl/NaOH) |
## Standard & Custom Dimensions
### Diameter (mm)
| Standard Stock | Custom Range |
|—————-|————–|
| 1.0, 1.5, 2.0, 2.5, 3.0, 4.0, 5.0, 6.35, 8.0, 10.0, 12.7, 15.0, 20.0, 25.0 | 0.5 – 50.0 |
### Length (mm)
| Standard Stock | Custom Range |
|—————-|————–|
| 5 – 200 | Up to 500 (consult engineering) |
### Tolerance
| Parameter | Tolerance |
|———-|———–|
| Diameter | ±0.5% |
| Length | ±0.1 mm |
| Camber | <0.1% |
| Concentricity | <0.05 mm |
### Custom End Configurations
– Stepped diameters
– Tapered ends
– Threaded ends (male/female)
– Flanged bases
– Notched / slotted
– Metallized bands (MoMn + Ni/Au)
– Through holes or blind holes
## Applications
### Vacuum Electronics
– Traveling Wave Tube (TWT) spiral support rods

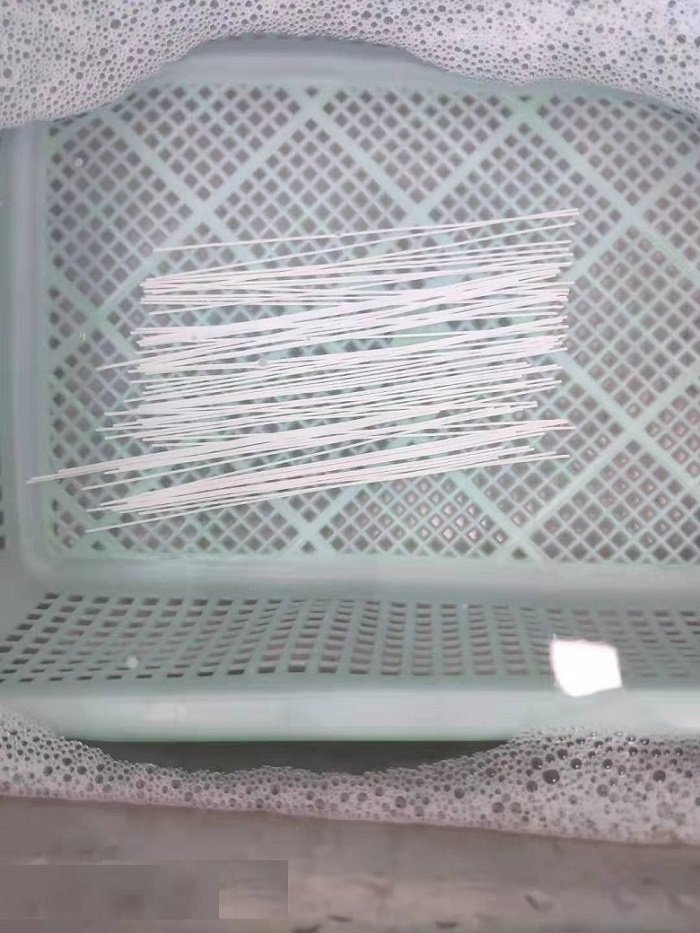

– Magnetron clamping bars
– Buck collectors and collection electrodes
– Microwave windows and attenuator ceramics
### RF & Microwave Packaging
– RF power transistor bases (Si, GaAs, GaN)
– Hermetic feedthrough insulators
– High-power terminations
### Nuclear Engineering
– Neutron reflectors and moderators
– Control rod components
– Nuclear fuel matrix elements
### High-Temperature Processing
– Crucible supports and stands
– Induction furnace liners
– Sintering boat rods
### Heat Sinks & Thermal Management
– High-density circuit heat spreaders
– Laser diode submounts
– High ambient temperature applications (no airflow cooling)
## Why Choose Coraynic Technology?
– **Vertically Integrated Manufacturing:** From BeO powder processing to precision CNC grinding and metallization.
– **Defense & Aerospace Qualified:** Supplier to military radar and missile guidance programs.
– **Engineering Support:** Our team assists with rod geometry optimization, metallization pattern design, and brazing compatibility.
– **Quality Control:** 100% inspection – ICP, laser particle analysis, universal tool microscopy.
– **Compliance:** RoHS, CE, ITAR compliant. Full SDS and material traceability.
> **Contact our engineers:**
> **Email:** sales@coraynic.com
> **Phone:** +86 187 61951906
> **Request a quote:** www.coraynic.com/contactus.html
BeO ceramic rod, beryllia rod, beryllium oxide rod, 99.5% BeO rod, TWT support rod, traveling wave tube ceramic, RF power BeO, BeO crucible, nuclear control rod, BeO attenuator, beryllia clamp, BeO collector, Coraynic BeO rod, BeO metallization, high thermal conductivity rod, low loss BeO, pulsed-power RF.
**© 2025 Coraynic Technology Limited – Your reliable advanced ceramic material partner.**
*All technical data are based on 99.5% BeO grade at room temperature. Custom specifications welcome. Safety Data Sheet (SDS) available upon request. Beryllium Oxide products are intended for professional industrial use only.*
